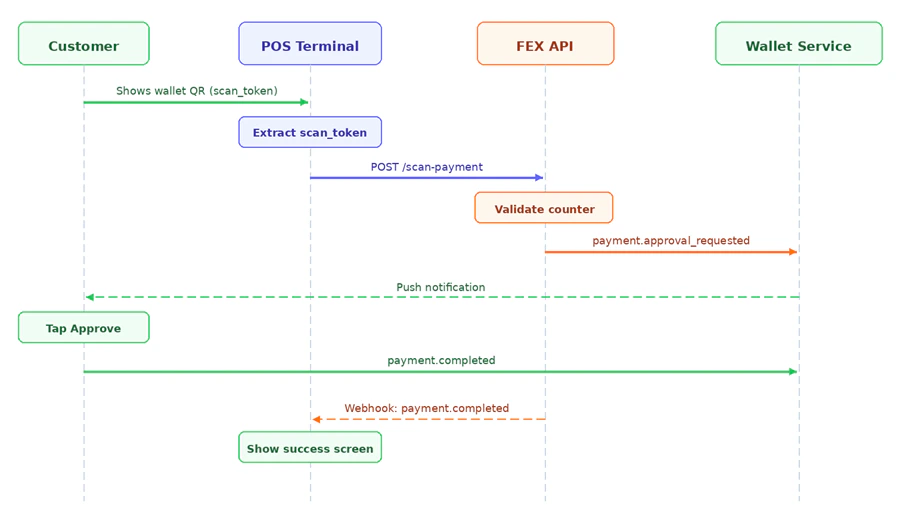

Reverse QR Flow (Counter Scan)

The POS terminal scans the customer’s QR code. The customer receives a push notification in their wallet app and taps to approve.

Prerequisites — Register a Counter (POS Terminal)

Each physical terminal should be registered once. This enables per-terminal reporting and ties scan-payment transactions to a specific terminal. POST /merchant/api/v1/counters

{
  "name": "Till 1",
  "location": "Main entrance"
}

Response:

{
  "success": true,
  "counter": {
    "id": "ctr_xxxx",
    "merchant_id": "a1b2c3d4-...",
    "name": "Till 1",
    "location": "Main entrance",
    "status": "active",
    "webhook_secret": "whsec_xxxxxxxx"
  }
}

Save webhook_secret — you will use it to verify incoming webhooks for this terminal. Treat it like a password.

Initiate a Scan Payment

POST /merchant/api/v1/scan-payment

{
  "scan_token":    "{value decoded from customer's wallet QR}",
  "counter_id":   "ctr_xxxx",
  "amount":       49.50,
  "currency":     "USD",
  "description":  "Lunch combo",
  "expires_in":   120,
  "reference":    "ORDER-2087",
  "callback_url": "https://your-backend.example.com/webhooks/fex"
}

Request fields:

Field	Type	Required	Description
`scan_token`	string	✅	Value decoded from the customer’s wallet QR
`counter_id`	string	✅	ID of the scanning terminal
`amount`	float	✅	Charge amount
`currency`	string	—	Default: `USD`
`expires_in`	integer	—	Seconds for customer to approve. Default: `300`
`description`	string	—	Shown to customer in push notification
`reference`	string	—	Your internal order or invoice ID
`callback_url`	string	—	URL to receive the `payment.completed` webhook

Response 201 Created:

{
  "success": true,
  "payment_intent": {
    "id": "pi_yyyy",
    "status": "pending_approval",
    "amount": 49.50,
    "expires_at": "2025-01-01T12:37:00Z"
  }
}

The customer receives a push notification immediately. Their approval fires a payment.completed webhook to your callback_url.
